D38999/24WD35PC
This series of round connectors, compliant with MIL-DTL-38999 III series requirements, adopt Triple-start threaded quick connection, with an anti-loose mechanism, featuring small size, light weight, high-density contacts, EMI/RFI shielding, removable crimp contacts, and anti oblique-mating;
This product has a fireproof shell, a variety of coatings, and vibration performance of high strength under high temperature, suitable for use in harsh sandstorm and damp circumstances.the material of shell is optional in aluminum-alloy, naval brass, stainless steel or composite.
How to order:
Shell size:
Electrical:
EMI shielding:
At 1GHz: minimum attenuation 85dB (F and W) At 10GHz: minimum attenuation 65dB (F)
At 10GHz: minimum attenuation 50dB (W)
Withstanding voltage (V)
| Service rating | M | I | II | N |
| Sea level | 1300 | 1800 | 2300 | 1000 |
| 21000m | 800 | 1000 | 1000 | 600 |
Insulation resistance:
Normal ≥ 5000 MΩ, damp heat ≥ 100 MΩ Electrical continuity between shells:
W class ≤ 2.5 mΩ, F class ≤ 1.0 mΩ, K class ≤ 5.0 mΩ
Mechanical:
Shell: Composite material
Finish: J class: Olive green
cadmium plating M class: Electroless nickel plating Insulator: Thermo-set
plastic
Grommet and seal: Silicon rubber
Contact: Copper alloy gold plating
Endurance: ≥ 1500 cycles Shock: At 3 ms half sinusoid, peak value of acceleration: 300 g
Environmental:
Contact layout:
Product pictures:
|
|

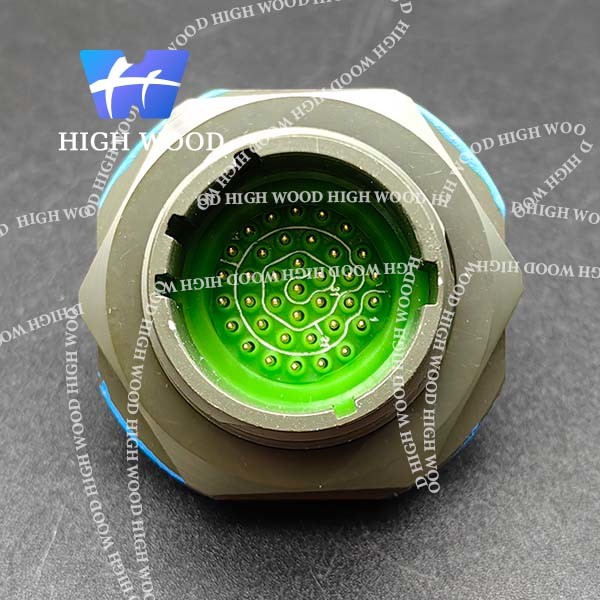

MIL-DTL-38999 Series Ⅰ，Ⅱ，And Ⅲ Connectors, D38999/24WD35PCA. D38999 Series Ⅲ Images
|
